US Army FT155-Q-2 Artillery Rule

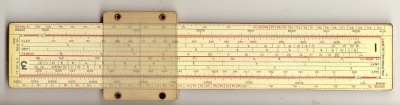

Rule 1, obverse
Rule 1, obverse

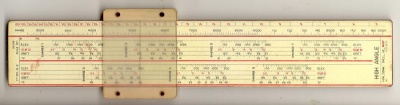

Rule 1, Reverse
Rule 1, Reverse

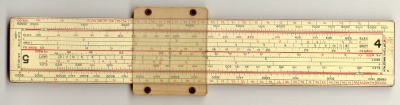

Rule 2, obverse
Rule 2, obverse

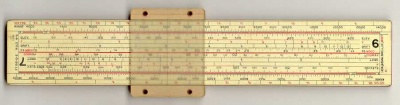

Rule 2, Reverse
Rule 2, Reverse
  • Type: Straight Custom
  • Size: 11.5 x 2.75 Inches
  • Material: Mahogany and heavy card
  • Scales:
    • Custom. No slide, only the runner moves.
  • HvH: Rule 1: 447

This rule is to assist the artilleryman in calculating the elevation and charge necessary to lob a 155mm shell up to 20000 yards in the general direction of the enemy. Scales for calculating drift and high-angle shots are included. Unfortunately, I have no manual and some of the scales are opaque to me.

The rules are marked: HOW, 155MM. SHELL, H.E., M107, to let you know that one uses these with the 155mm Howitzer gun with High Explosive rounds.

Provided by Sara Teller.
